Replacement of (2)Hydraulic Dam power units and Cylinders.

Municipality had a limited budget and asked if an HPU could be made using existing components.

S&V INC was able to tailor a solution that kept costs down while producing a system that met system requirements and would last.

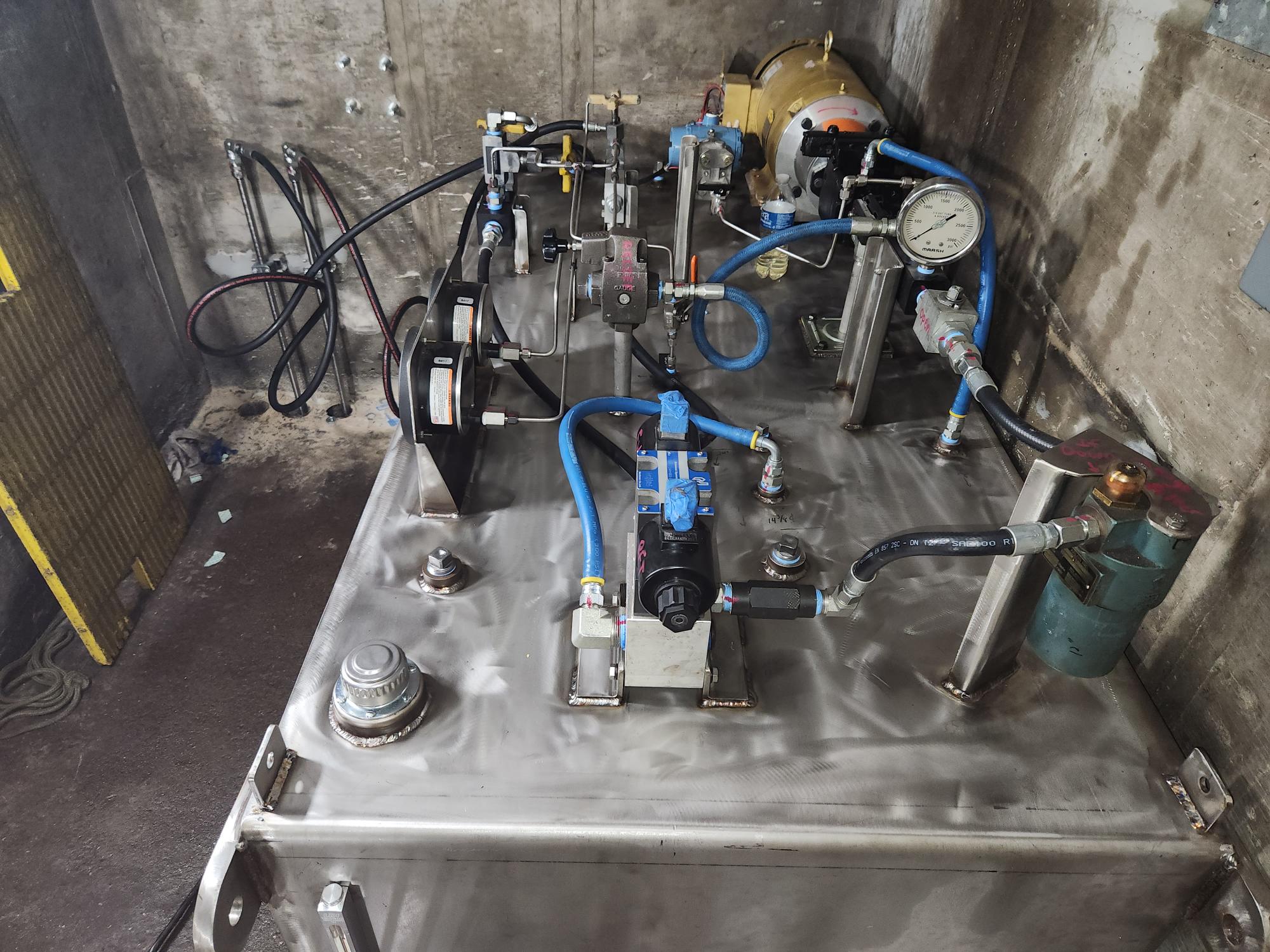

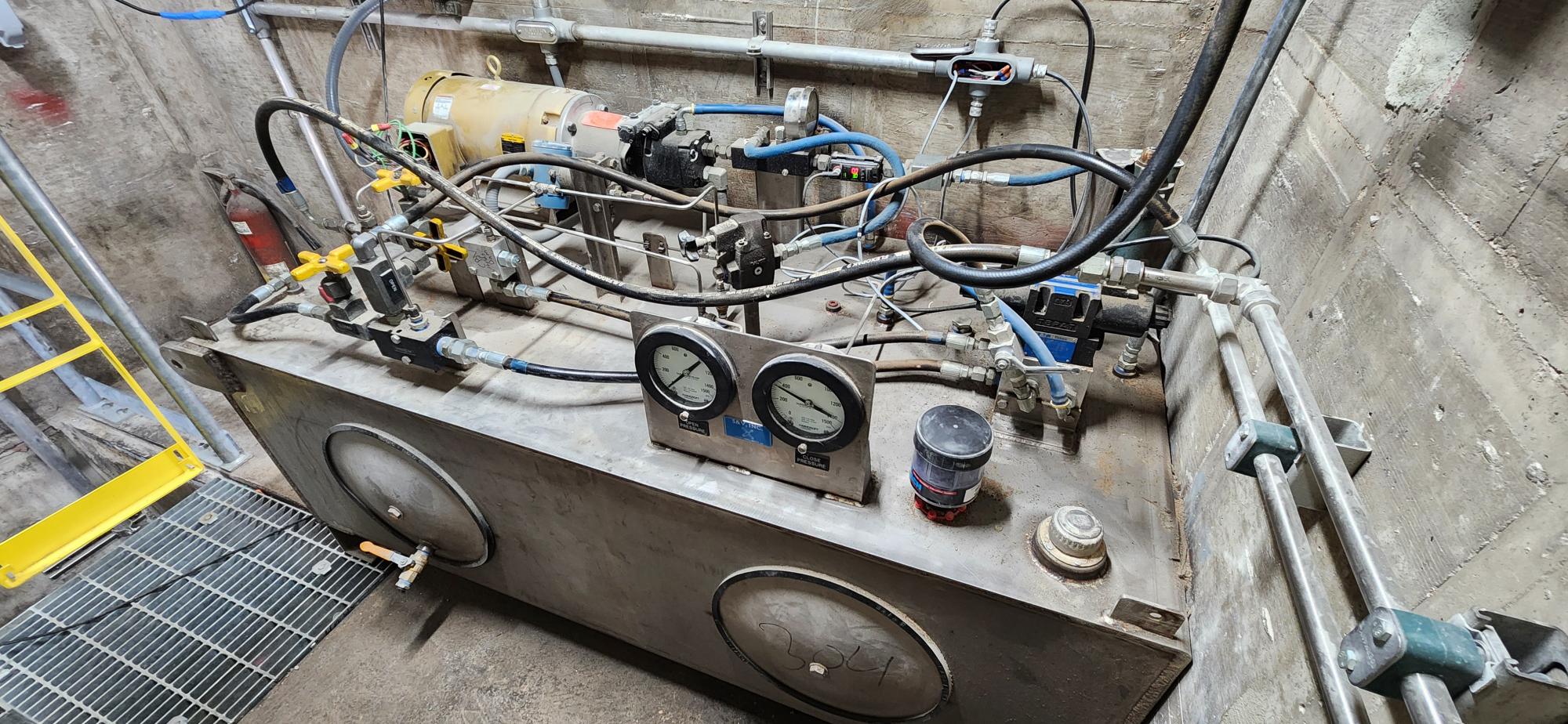

HPU Secifications:

-10HP

-3000PSI pressure compensated piston pump

-400 gallon custom 304SS reservoir

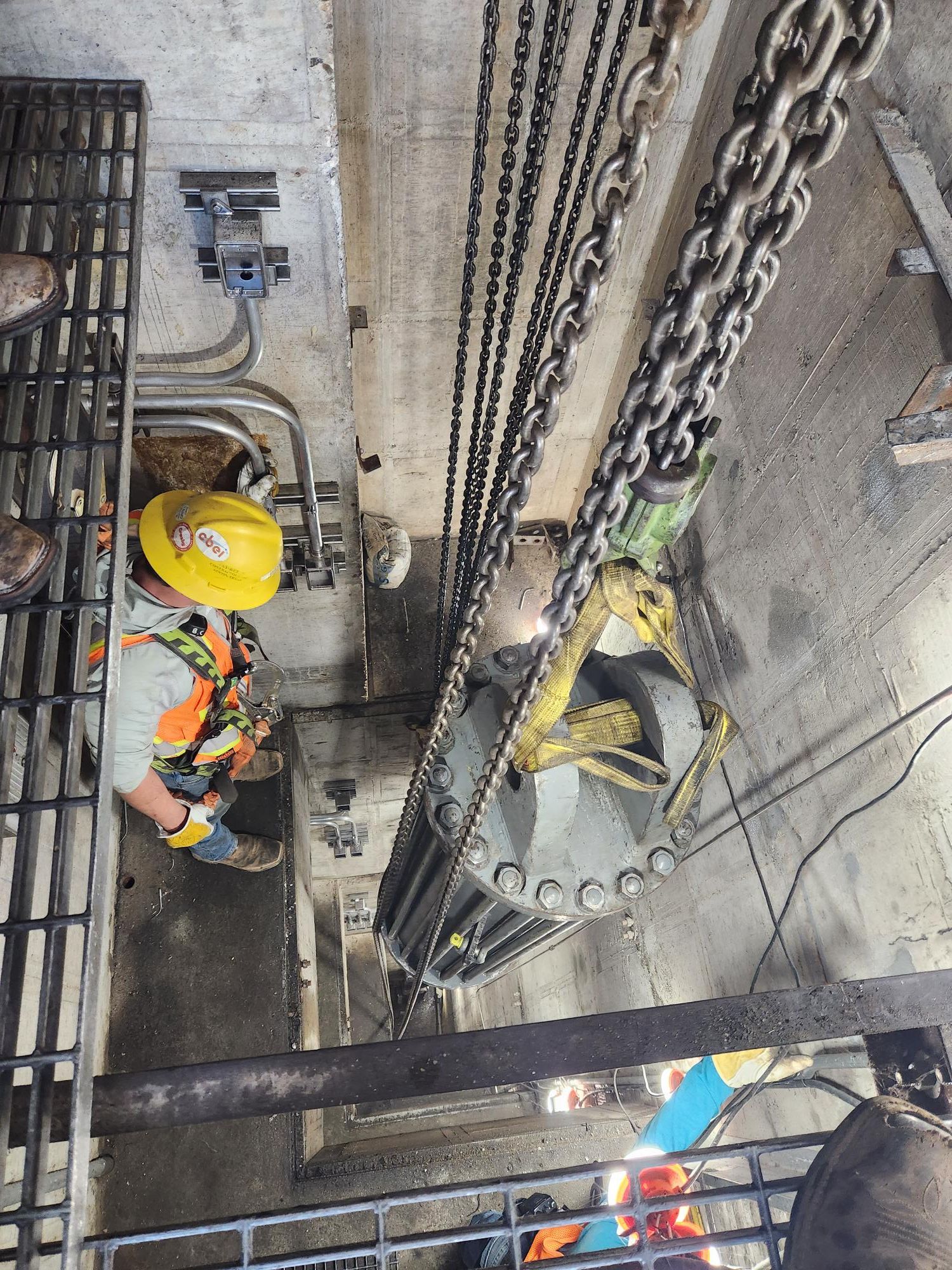

Repair/rebuild (2)Hydraulic Dam Cylinders.

Cylinder dimensons:

22" Bore

6" Rod

72" Stroke

S&V provided full engineering package for equipment.
