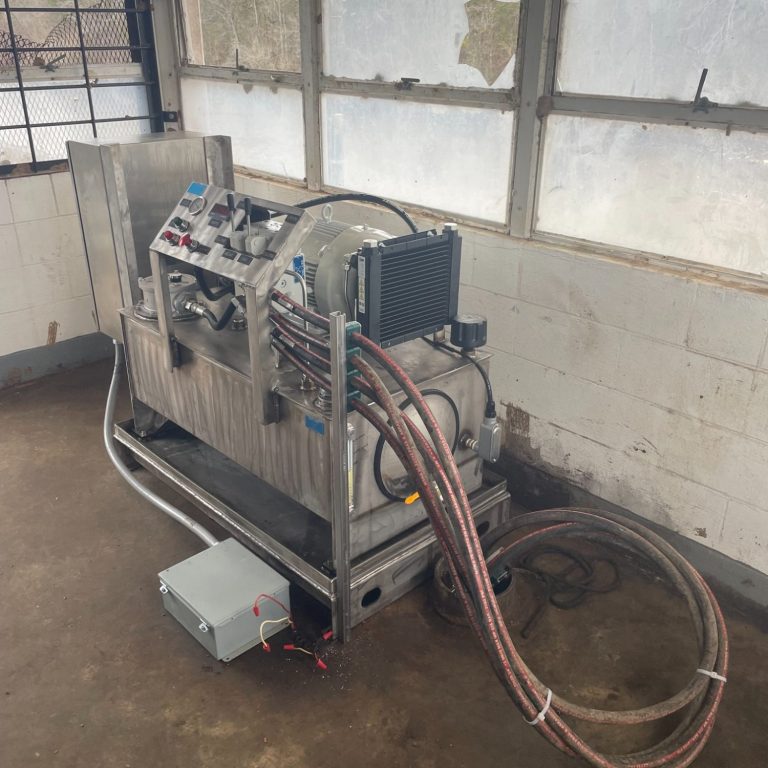

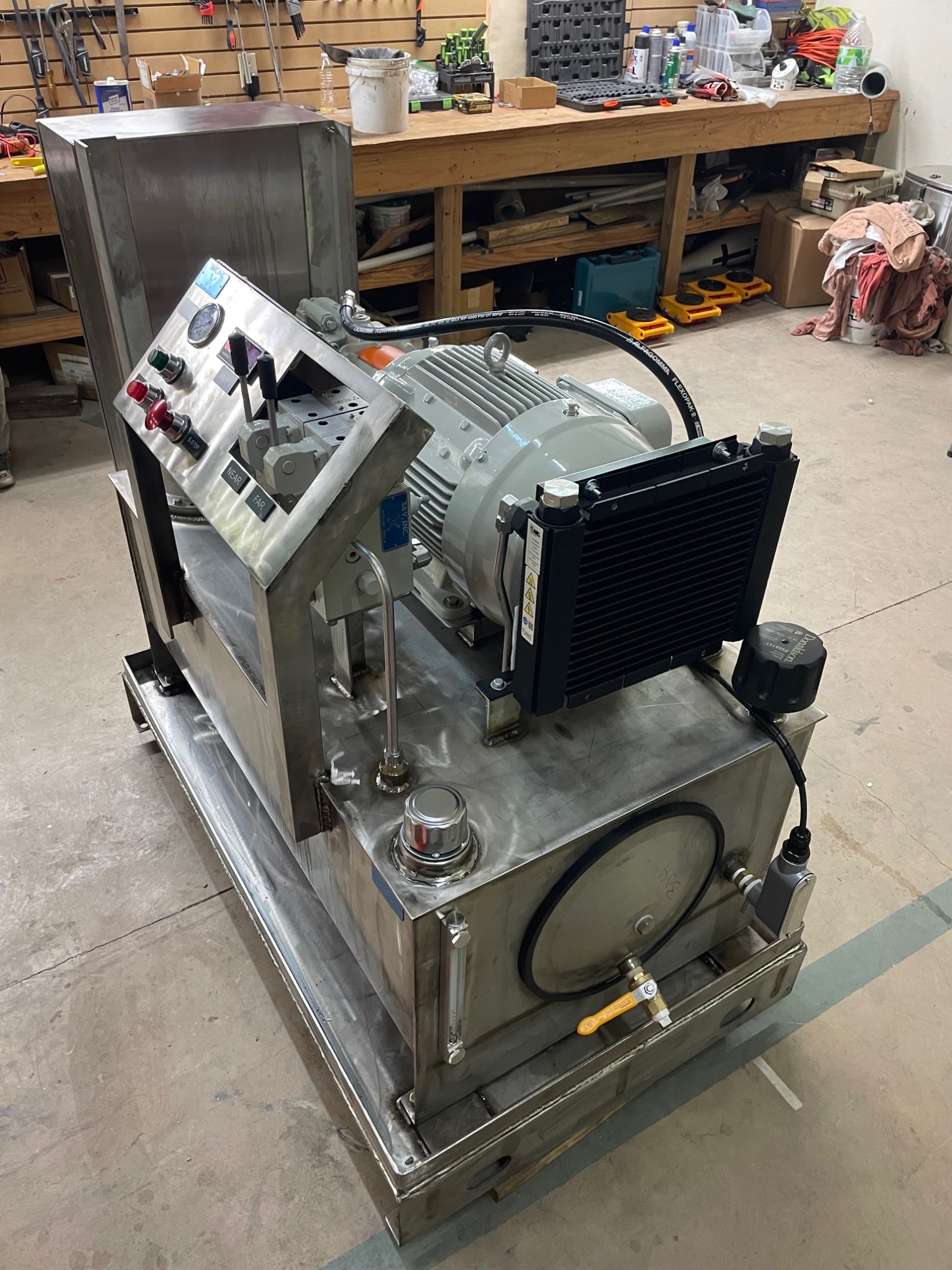

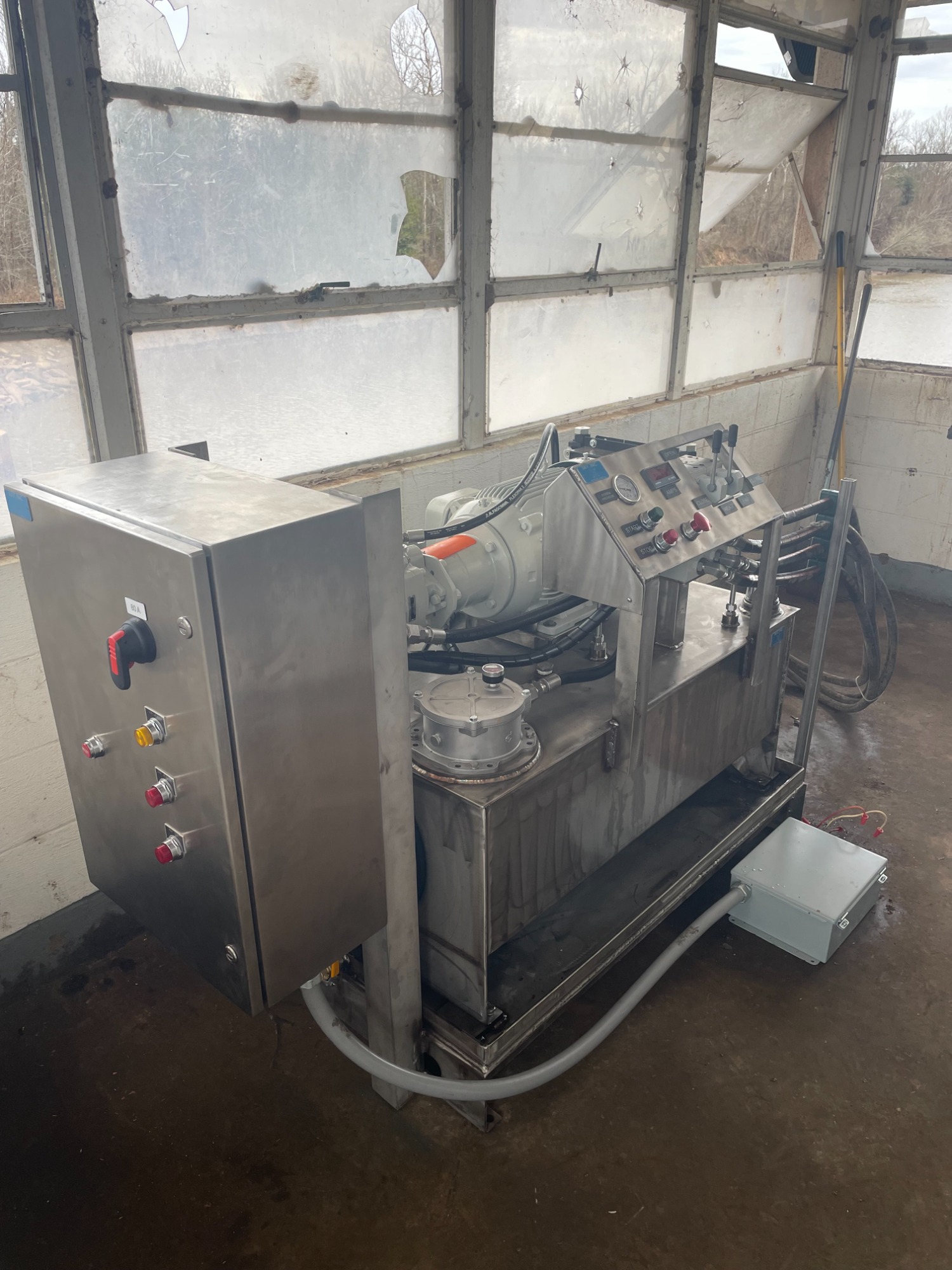

This HPU consists of one 15HP electric motor that drives a pressure compensated axial piston pump rated to 2,000psi at 18gpm. The system also includes a safety relief valve to prevent over pressurization. This equipment is mounted on a 60 gallon 316 SS reservoir/skid assembly.

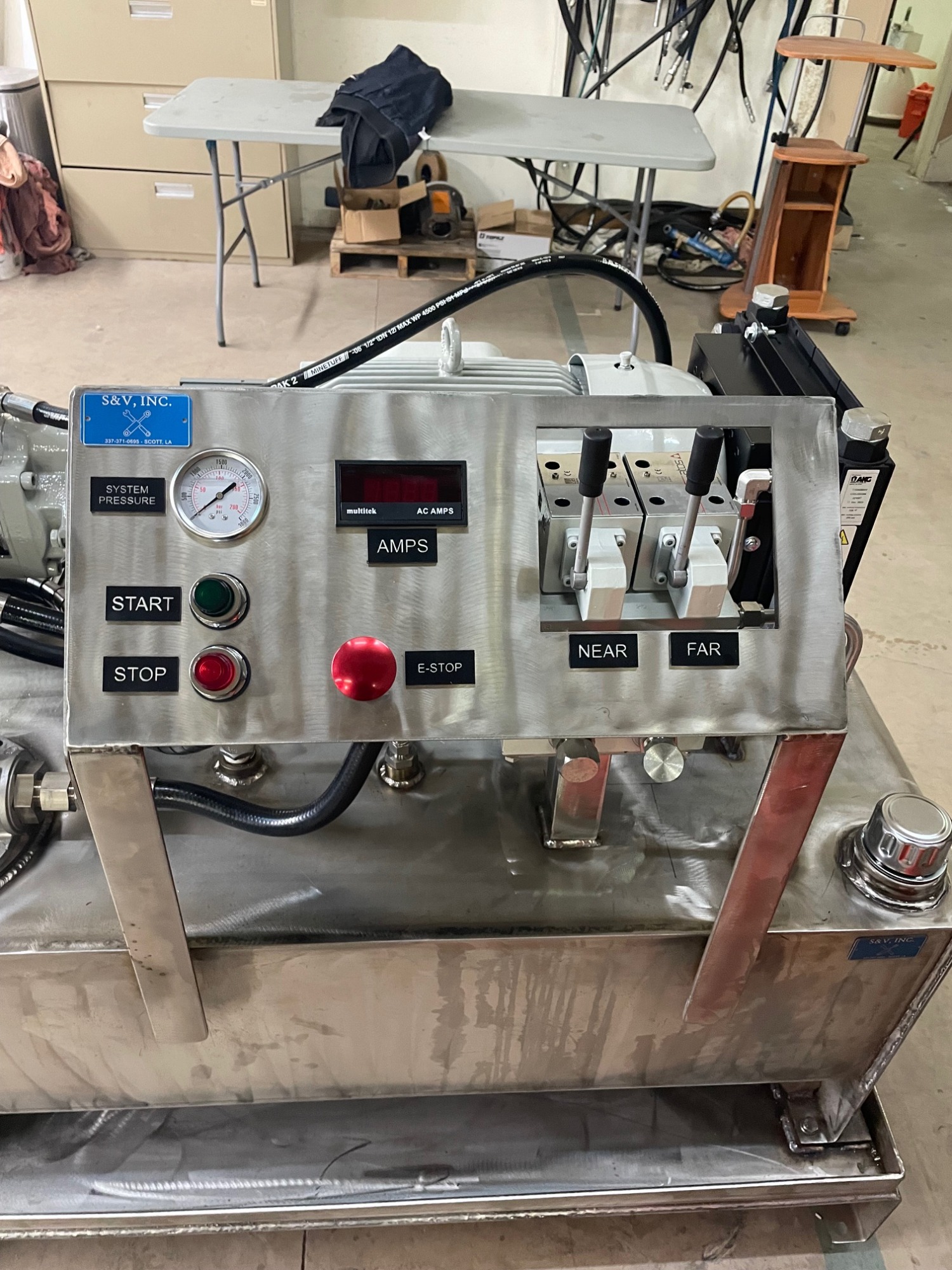

An on/off directional control valve directs the flow of oil from the pump to two hydraulic cylinders that operate independant of one another via the manual control station.
